CPD Series is automatic polyacrylamide mixing and batching machine, it is a machine and equipment specially used for the production of polyacrylamide (PAM). PAM is a polymer compound with strong water absorption and adhesion. It is widely used in water treatment, oil field exploitation, soil stability and other fields.
CPD Series automatic polyacrylamide mixing and batching machine mainly consists of the following parts:
Mixing barrel: used for mixing different types of polyacrylamide powder and liquid. The capacity of mixing barrel can be selected according to production needs.
Feeding system: a system for feeding polyacrylamide powder and liquid into mixing drum, which can realize accurate batching through metering pump.
Mixing system: fully mix the polyacrylamide powder and liquid in the mixing barrel to ensure the stable quality of the mixture.
Control system: used to control the operation of the whole machine and equipment, including the operation of the metering pump, the mixing speed of the mixing barrel, and the alarm of the equipment.
Conveying system: deliver the mixed polyacrylamide to the downstream production line or storage tank.
The working process of automatic polyacrylamide mixing and batching machine is as follows:
Put the polyacrylamide powder and liquid to be mixed into the feeding system according to the proportion.
The metering pump sends powder and liquid into the mixing barrel respectively according to the set proportion.
The mixing system in the mixing bucket starts to work, mixing the polyacrylamide powder and liquid evenly.
The control system monitors the whole equipment and will send an alarm signal when the equipment is abnormal.
The mixed polyacrylamide is sent to the downstream production line or storage tank through the conveying system.
In short, the automatic polyacrylamide mixing and batching machine can achieve accurate batching and mixing, greatly improving the quality and efficiency of PAM production.
We also have CAD series device which can be used for other chemical dosing requirements.

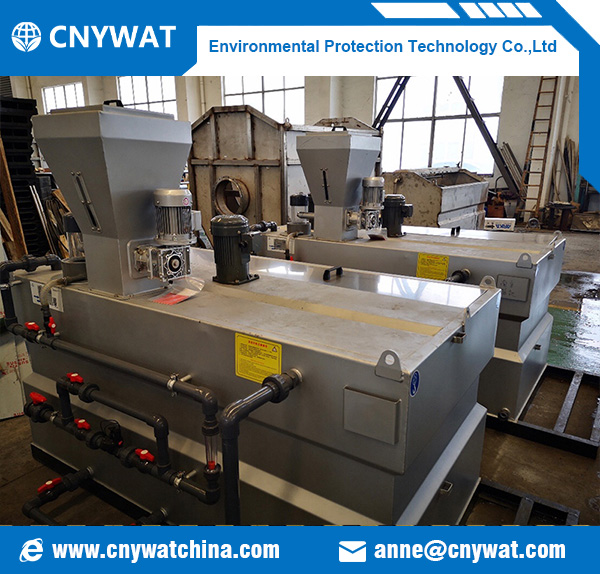

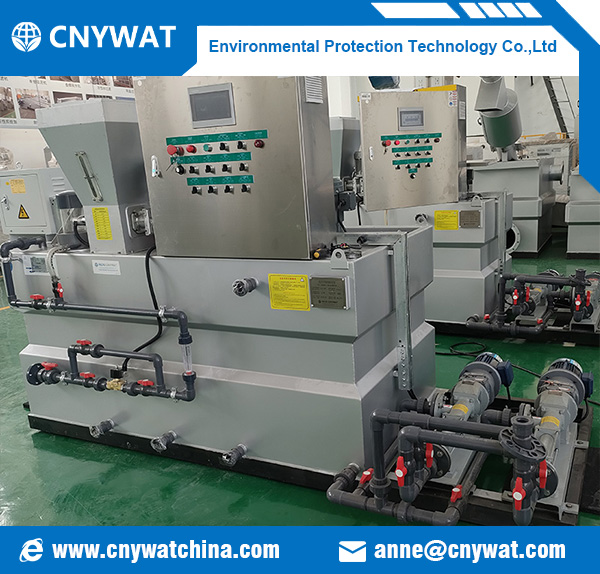

PAM mixing and dosing machine
|PAM mixing and dosing machine|
|Preparation Capacity Q(L /h)||500||1000||1500||2000||3000||4000|
|Powder inputing motor power N(KW)||0.18||0.18||0.18||0.18||0.18||0.18|
|Agitator||Propeler blade dameter Φ(mm)||250||250||250||250||250||250|
|Rotating speed of vertical shaft N(r/min)||96||96||96||96||96||96|
|Water inlet pipe diameter DN1(mm)||20||20||25||25||32||32|
Outlet pipe diameter
